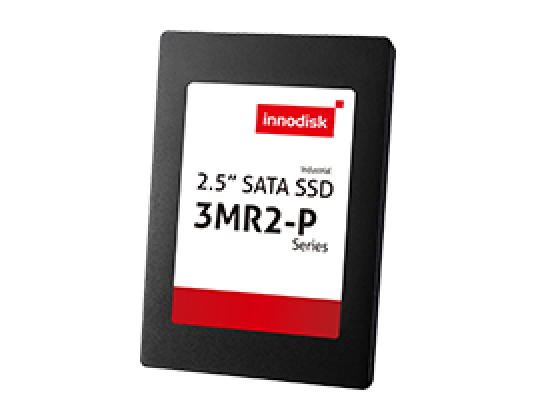

2.5" SATA SSD 3MR2-P
Product Features
- Compliant with MIL-STD-810-F/G
- Data security (QEraser/ SEraser/ Destroy/ Write Protect)
- High random R/W performance
- iSMART disk health monitoring
- Intelligent error recovery system
- Enhanced power cycling management
- iCell technology for data protection
- Conformal coating (optional)
Overview:
Innodisk 2.5” SATA SSD 3MR2-P is a SATA III 6.0Gb/s Flash based disk, which delivers excellent performance and reliability. Especially, it comes with several data security functions, including Quick Erase/ Security Erase/ Destroy and also Write Protect. All the security functions can be triggered both by hardware and software approaches. 2.5” SATA SSD 3MR2-P is compliant with MIL-STD-810F/G standards. The SSD is equipped ruggedized hardware design and thus it can perform well in the harsh environment. 2.5” SATA SSD 3MR2-P is developed with Innodisk owned technical knowhow to ensure the data integrity and highest levels of reliability.
Specifications:
Model Name | 2.5" SATA SSD 3MR2-P |
Interface | SATA III 6.0 Gb/s |
Flash Type | MLC |
Type | 2.5" |
Capacity | 8GB~2TB |
Max. Channels | 4 |
Sequential R/W (MB/sec, max.) | 520/450 |
Max. Power Consumption | 5.78 W (5V x 1155 mA ) |
Thermal Sensor | Y |
External DRAM Buffer | Y |
H/W Write Protect | Optional |
ATA Security | Y |
S.M.A.R.T. | Y |
Dimension (WxLxH/mm) | 69.85 x 100.00 x 9.5 |
Vibration | 20G@7~2000Hz |
Shock | 1500G@0.5ms |
MTBF | >3 million hours |
Storage Temperature | -55°C ~ +95°C |
Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
Order Information:
Operation Temp.
Standard Grade
(0°C ~ +70°C)
Industrial Grade
(-40°C~+85°C)
8GB
DRS25-08GD81BC1SCP
DRS25-08GD82BC1SCP
DRS25-08GD82BC1SCP
DRS25-08GD81BW1SCP
DRS25-08GD82BW1SCP
DRS25-08GD82BW1SCP
16GB
DRS25-16GD81BC1SCP
DRS25-16GD82BC1SCP
DRS25-16GD81BW1SCP
DRS25-16GD82BW1SCP
32GB
DRS25-32GD81BC1DCP
DRS25-32GD81BC1QCP
DRS25-32GD82BC1DCP
DRS25-32GD82BC1QCP
DRS25-32GD81BC1DWP
DRS25-32GD81BC1QWP
DRS25-32GD82BW1DWP
DRS25-32GD82BW1QWP
64GB
DRS25-64GD81BC1QCP
DRS25-64GD82BC1QCP
DRS25-64GD81BW1QCP
DRS25-64GD82BW1QCP
128GB
DRS25-A28D81BC1QCP
DRS25-A28D82BC1QCP
DRS25-A28D81BW1QCP
DRS25-A28D82BW1QCP
256GB
DRS25-B56D81BC1QCP
DRS25-B56D82BC1QCP
DRS25-B56D81BW1QCP
DRS25-B56D82BW1QCP
512GB
DRS25-C12D81BC1QCP
DRS25-C12D82BC1QCP
DRS25-C12D81BW1QCP
DRS25-C12D82BW1QCP
1TB
DRS25-01TD81BCAQCP
DRS25-01TD82BCAQCP
DRS25-01TD81BWAQCP
DRS25-01TD82BWAQCP
2TB
DRS25-02TD81BCAQC
DRS25-02TD82BCAQC
DRS25-02TD81BWAQC
DRS25-02TD82BWAQC
(0°C ~ +70°C)
(-40°C~+85°C)
DRS25-08GD82BC1SCP
DRS25-08GD82BC1SCP
DRS25-08GD82BW1SCP
DRS25-08GD82BW1SCP
DRS25-16GD82BC1SCP
DRS25-16GD82BW1SCP
DRS25-32GD81BC1QCP
DRS25-32GD82BC1DCP
DRS25-32GD82BC1QCP
DRS25-32GD81BC1QWP
DRS25-32GD82BW1DWP
DRS25-32GD82BW1QWP
DRS25-64GD82BC1QCP
DRS25-64GD82BW1QCP
DRS25-A28D82BC1QCP
DRS25-A28D82BW1QCP
DRS25-B56D82BC1QCP
DRS25-B56D82BW1QCP
DRS25-C12D82BC1QCP
DRS25-C12D82BW1QCP
DRS25-01TD82BCAQCP
DRS25-01TD82BWAQCP
DRS25-02TD82BCAQC
DRS25-02TD82BWAQC
