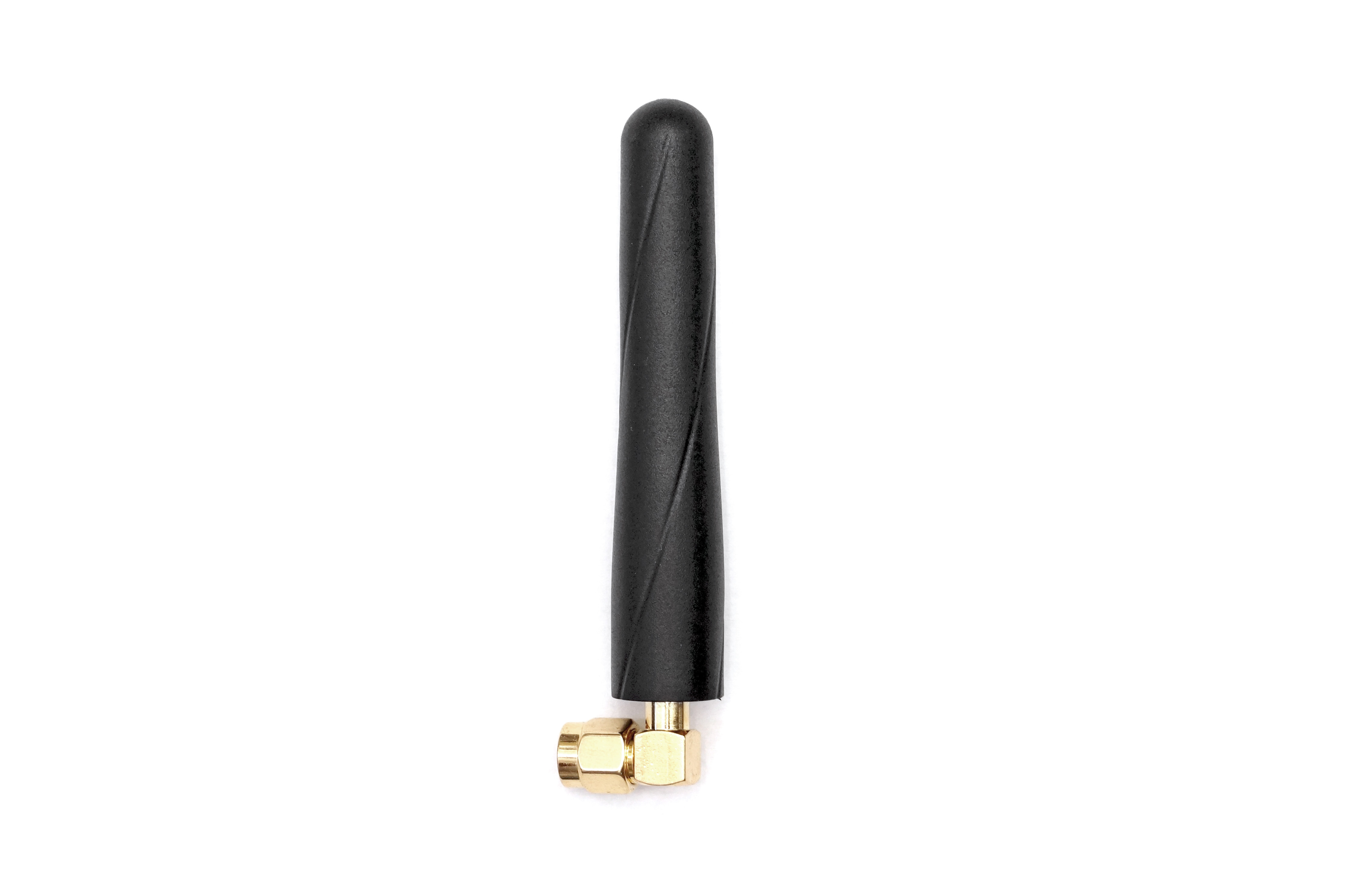

• 2J0801CF-C40G-A38G

Ürün Tanımı

Connector Mount,28 dB Gain,Pre-Filter GNSS,Low Power Consumption,Ground Plane Dependent

GPS/GLONASS/BeiDou
StandardsGPS/GLONASS/BeiDou/QZSS/Galileo
Frequency1561.098, 1575.42, 1598-1606
Impedance (Ohm)50
Radiation PatternHemispherical
Passive Gain (dBi)~3.5, ~3.4, ~3.2
Voltage Range (V)1.5 - 3.6
Active Gain (dB)28 @ 2.7 V
Current Consumption (mA)9 @ 2.7 V
Power Consumption (mW)24.3 @ 2.7 V
Saw Filter TypePre-Filter
Out of Band Rejection (dB)~43
ESD Protection (kV)6


Ürün Detayları

  • Antenna Type: Harici
  • Bluetooth: -
  • Certificates: -
  • Dimensions (mm): Ø 13.2 × 19 × 81.5
  • Frequency1: GPS/GLO/BEI/QZSS/Galileo/L1
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: -
  • Mounting: Connector Mount
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: -
