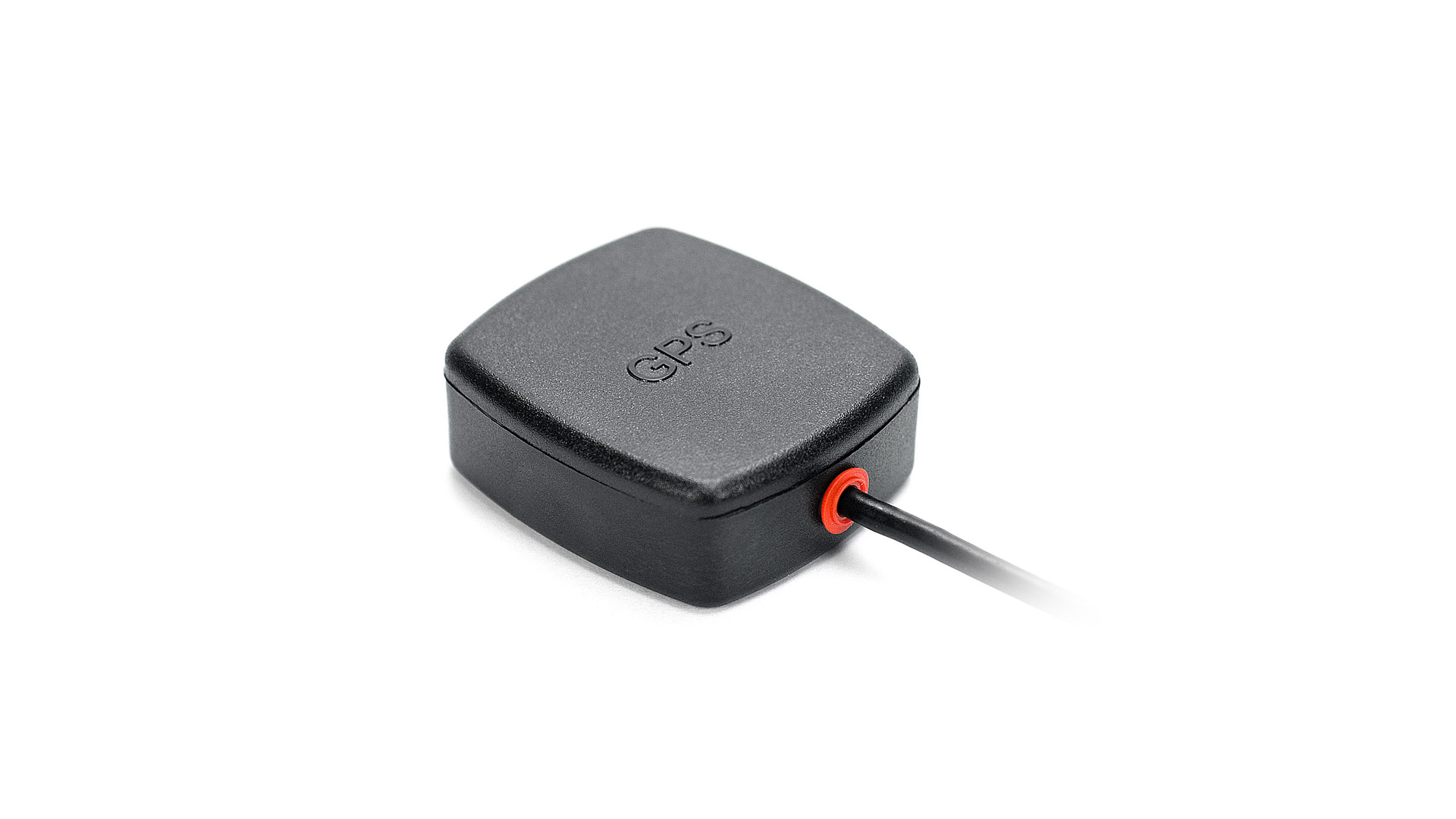

2J4301MPFx

  • 2J4301MPFx
Teklif Talep Listenize Ekleyin

Ürün Tanımı

2J

Ground Plane Independent,Customizable Cable and Connector,Certificates: IP67,GPS/QZSS/Galileo,Post-Filter,Magnetic/Adhesive Mount

GPS, Voltage 2.7 - 5.5 V
StandardsGPS/QZSS/Galileo
Frequency1575.42
VSWR<1.2:1
Efficiency (%)~69
Impendance (Ohm)50
PolarisationRHCP
Active Gain (dB)23 @ 3V, 24 @ 5V
Power Consumption (mW)138 Max
Voltage (V)2.7 - 5.5
Current (mA)15 - 25
Power Consumption (mW)
138 Max

Ürün Detayları

  • Antenna Type: Harici
  • Bluetooth: -
  • Certificates: IP67
  • Dimensions (mm): 38 x 34 x 13.5/14.5
  • Frequency1: GPS/QZSS/Galileo/L1
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: -
  • Mounting: Magnetic/Adhesive Mount
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: -
