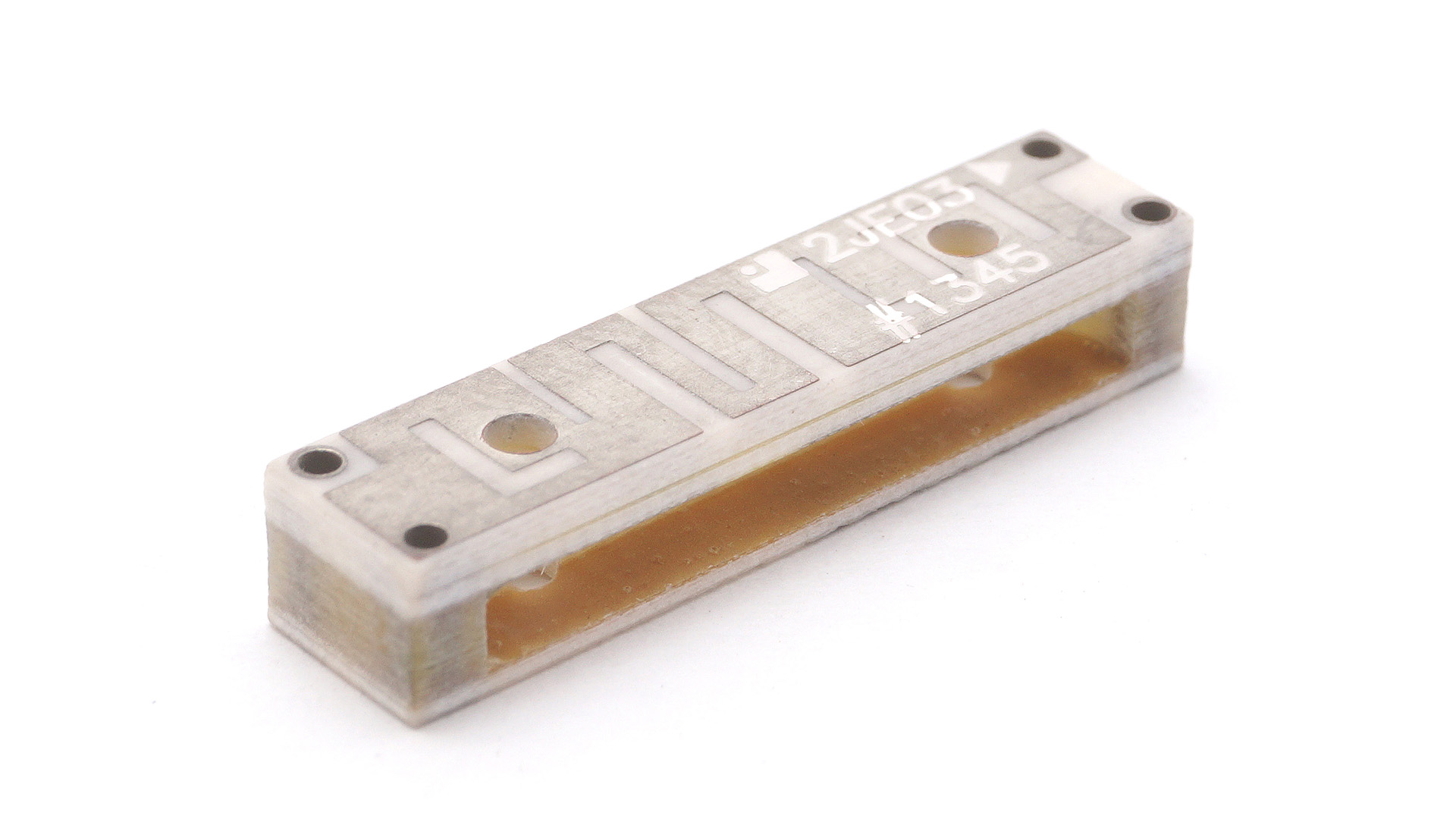

2JE03

  • 2JE03
Satın Al Teklif Talep Listenize Ekleyin

Ürün Tanımı

2J

High Performance,Embedded Antenna,Low Cost,Surface Mount

CELLULAR
Standards2G and 3G
Frequency824-960, 1710-2170
VSWR<=3:1, <=3:1
Efficiency (%)~55, ~45
Peak Gain (dBi)~1, ~3
Impendance (Ohm)50
PolarisationLinear
Max. Input Power (W)25

Ürün Detayları

  • Antenna Type: Dahili
  • Bluetooth: -
  • Certificates: -
  • Dimensions (mm): 24 x 5.5 x 4.4
  • Frequency1: 3G CELL/2G
  • Frequency2: -
  • Frequency3: -
  • Frequency4: -
  • LoRa/Sigfox: -
  • Mounting: Surface Mount Fiberglass
  • Operating Temperature: -40 °C to +85 °C
  • WiFi: -
  • ZigBee: -
