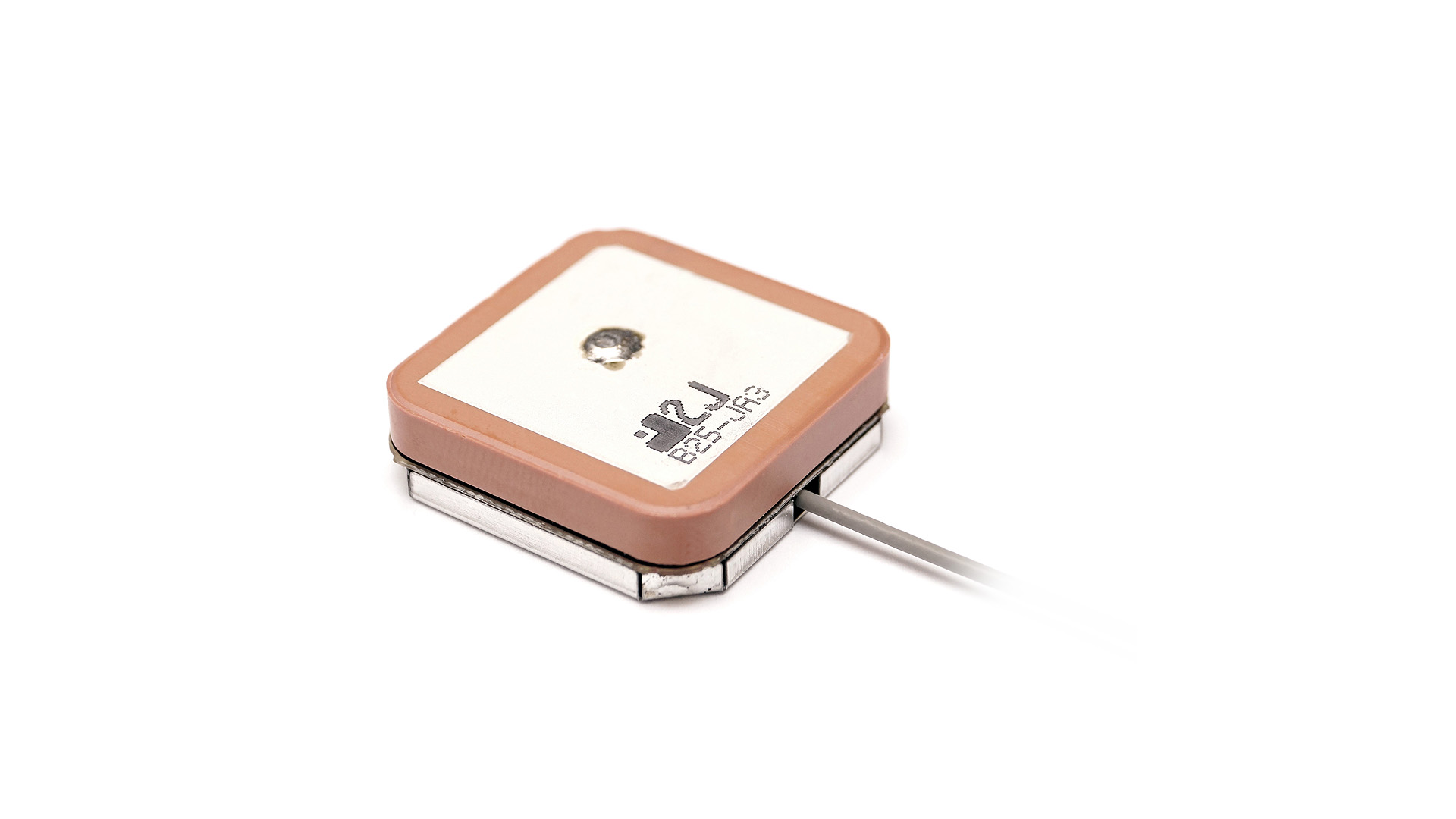

2JM0801F
.jpg "2JM0801F")
Ürün Tanımı
GPS/QZSS/Galileo,28 dB Gain,Low Noise Figure,Low Power Consumption,Mid-Filter,25 × 25 × 7.6 mm
GPS - Ceramic Active Antenna
| Standards | GPS/QZSS/Galileo |
| Frequency | 1575.42 |
| Passive Gain (dBi) | ~3.6 |
| Voltage Range (V) | 1.5 - 3.6 |
| Active Gain (dB) | 28 @ 2.7 V |
| Noise Figure (dB) | 1.0 @ 2.7 V |
| Current Consumption (mA) | 9 @ 2.7 V |
| Power Consumption (mW) | 24.3 @ 2.7 V |
| Saw Filter Type | Mid-Filter |
| Out of Band Rejection (dB) | 43 |
| ESD Protection (kV) | 2 |
