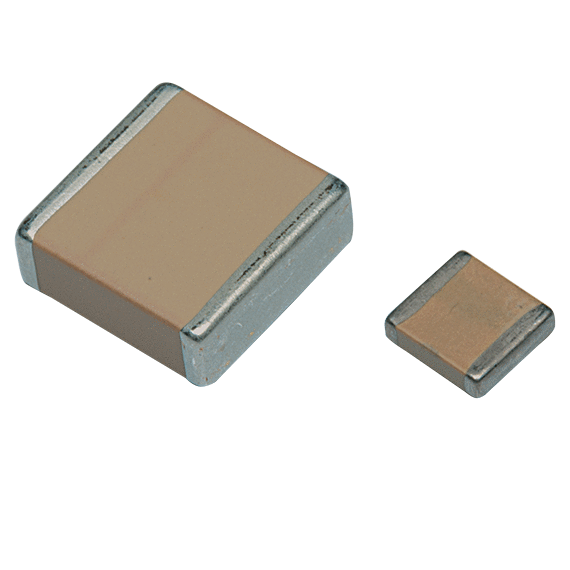

C SERIES C48X
.gif "C SERIES C48X")
Ürün Tanımı
Main Features
| Up to 10kV |
| Excellent withstanding to charge/discharge |
| Excellent stability under voltage |
| C48X dielectric (-2 200 ± 500)ppm/°C |
Typical Applications
| Power supplies |
| Voltage multipliers |
| Pulse application |
Technical Characteristics
| Dielectric | C48X | |
| Capacitance | Minimum : 27 pF | |
| Capacitance | Maximum : 8,2 µF | |
| Voltage DC | Minimum : 200 V | |
| Voltage DC | Maximum : 5 kV | |
| Voltage AC | Up to: Consult us V | |
| Temperature | Minimum : -55 °C | |
| Temperature | Maximum : 125 °C | |
| Case sizes | 1825 2220 2225 1515 2825 3333 4040 5440 5550 6560 11283 16080 | |
| Terminations | SMD | |
| Notes | No special note |
