Fischer Group


ROBUST OPTICAL PERFORMANCE

Easy use, cleaning and maintenance even in harsh environments make Fischer FiberOptic Series ideal connectors for demanding applications.

The best of butt-joint optical performance, singlemode (UPC/APC) and multimode (UPC). Removable mono-block mate adapter.

IP68 (mated) / (IP67) unmated for quick and easy field cleaning.

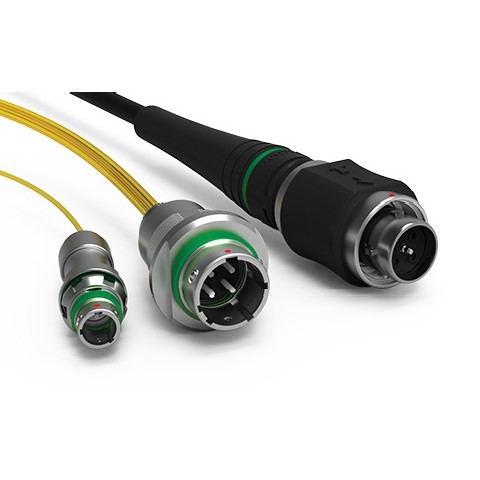

FIBEROPTIC F01, F02 & F04

The Fischer FiberOptic Series with one (FO1), two (FO2) or four (FO4) optical channels features some major novelties. Complete fiber optic cable assemblies can also be provided for maximum performance and time saving, either directly from our factory or from one of our in-country Value Added Reseller partners.

Key Features

  • IP68 mated & IP67 unmated ingress protection (Norm IEC 60529)
  • UPC & SM APC polishing
  • Easy cleaning even in the field
  • High optical performances for high precision and data transmission rates
  • Harsh/extreme environment fiber optic solution (Norm IEC 61753-1 Cat. E)
  • Push-pull user-friendly mating plugs & receptacles

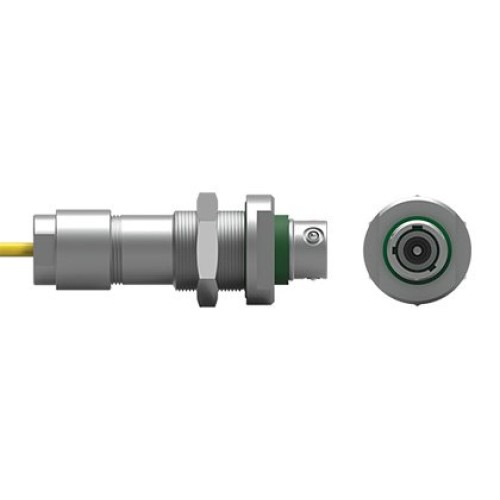

  • Available with gas-tight panel receptacles and with SM & MM optical fibers
  • Size: 13-24mm


FIBEROPTIC HYBRID

The Fischer FiberOptic Series hybrid connector with two optical channels and two electrical contacts is perfectly suitable for demanding indoor and outdoor applications, where space saving is essential.

Key Features

  • IP68 mated & IP67 unmated Ingress Protection (Norm IEC 60529)
  • Extreme Environment FiberOptic Solution (Norm IEC 61753-1 Cat. E)
  • Fiber contacts: SM & MM optical fibers, UPC & APC Polishing
  • Electrical contacts: current rating 10 [A] (Norm IEC 60512-5-2-5b) and rated voltage 400 [V] r.m.s. (Norm EIA-364-20-B and IEC 60512-3-5b)
  • Push-pull easy mating plugs & receptacles
  • Optional gas tight panel receptacles (IP68 or <10-6 mbar l/s)

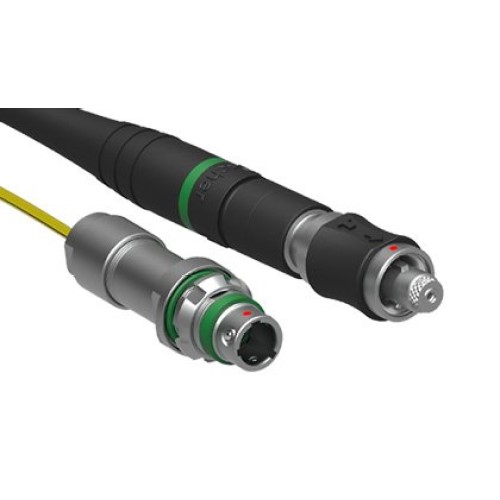

SMALLER AND SMARTER: NEW SINGLE FIBER OPTIC CONNECTIVITY SOLUTION

In a nutshell: main technical specifications

  • IP68 mated & IP67 unmated ingress protection (Norm IEC 60529)
  • UPC & SM APC polishing
  • Easy cleaning even in the field
  • High optical performances for high precision and data transmission rates
  • Harsh/extreme environment fiber optic solution (Norm IEC 61753-1 Cat. E)
  • Push-pull user-friendly mating plugs & receptacles
  • Available with gas-tight panel receptacles and with SM & MM optical fibers
  • Size: 13 mm

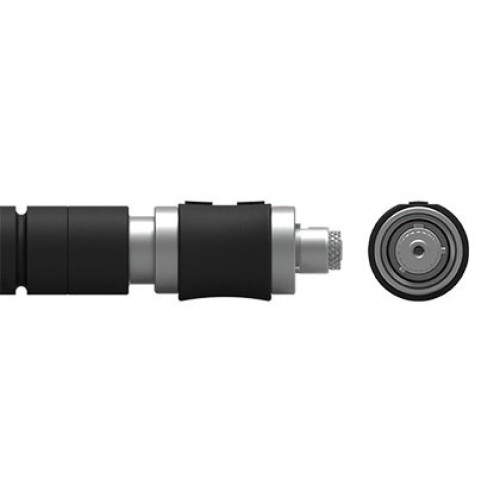

The FO1 connector integrates fully into the existing Fischer FiberOptic Series, well-known for its robust and faultless optical performances in any conditions, combined with easy use, cleaning and maintenance even in the field.

UPC & APC polishing reduces insertion and return losses, making devices more secure, while IP68 sealing provides highly valuable device protection. The push-pull locking system allows quick and easy connections and disconnections, making these connectors ideally suited for outdoor environments. The removable sleeve holder (monobloc mate adapter) ensures that end faces can be cleaned easily, keeping electronics in top condition



The FO1 connector can be pre-configured with Fischer FiberOptic Series reels of any required length, a convenient and flexible turnkey solution. To enable customers to choose the right connectivity solution for their specific needs, Fischer Connectors also provides a user-friendly request form that guarantees the mistake-proof configuration of cable assemblies.


RUGGED FIBER OPTIC INTERCONNECT SOLUTION

Fischer FiberOptic connectors and cabling solutions offer the best quality and stability needed for an optical link, combined with easy mating and easy field cleaning. They will perform perfectly in harsh and extreme environments and have a high  ingress protection of IP68 when mated, and IP67 unmated.



Key features and benefits

Durability

Reliability

  •  IP68 (mated) / IP67 (unmated)
  •  1,000 mating cycles
  •  Performs under extreme environment

Optical Performance

High Speed Communication

  •  Low back reflection
  •  Singlemode (APC/UPC) & Multimode optical fibers)
  •  APC & UPC polishing

Easy Mating

easy mating

  •  Push-Pull connector system
  •  Easy to mate/unmate with one hand



Easy Field Cleaning

easy cleanning

  •  Removable mono-block mate adapter
  •  Easy access to ferrules




Reduced InsertIon and return losses

The Fischer FiberOptic Series is well-known for its robust and faultless optical performances in any conditions. UPC & APC polishing reduces insertion and return losses, making devices more secure, while IP68 sealing provides highly valuable device protection.


Push-pull locking system

The push-pull locking system allows quick and easy connections and disconnections, making these connectors ideally suited for outdoor environments. The removable sleeve holder (monoblock mate adapter) ensures that end faces can be cleaned easily, keeping electronics in top condition.


Robustness

Fischer FiberOptic Series operates effectively at cryogenic temperatures, with a minimal effect on insertion and return losses, and on optical and sealing performance. It provides an excellent baseline measurement for further testing and a good starting point for investigating fiber optic interconnect solutions for other cryogenic applications.

Liquefied natural gas (LNG) pipelines, where temperatures can drop to approximately -180°C, are another example of an application that depends on robustness to ensure reliable, long-term performance. As demonstrated in the CERN tests, optical fiber can be used to monitor temperatures along the pipeline even in extreme cold.

The test results confirm the ruggedness of our connectivity solution, which can deliver precision optical performance in cryogenic and other extreme applications.




Easy Field Cleaning

Fischer Connectors can offer a fiber solution that is extremely quick and easy to clean thanks to a removable mono-block mate adapter
