Ürün Tanımı
The new INP1010/1011 products are complete solutions with integrated wireless connectivity plus microcontroller for edge-of-network IoT designs. The modules use InnoPhase’s award-winning Talaria TWO™ Multi-Protocol Platform with Wi-Fi and BLE for wireless data transfer, an embedded Arm Cortex-M3 for system control and user applications plus advanced security elements for device safeguards.
The Talaria TWO’s unique digital polar radio architecture makes the INP1010/1011 modules the world’s lowest power Wi-Fi solution. It also provides BLE connectivity for Wi-Fi provisioning, diagnostics, and other local communication. The integrated solution is ideally suited for battery-based, direct-to-cloud devices such as smart door locks, remote security cameras and connected sensors.

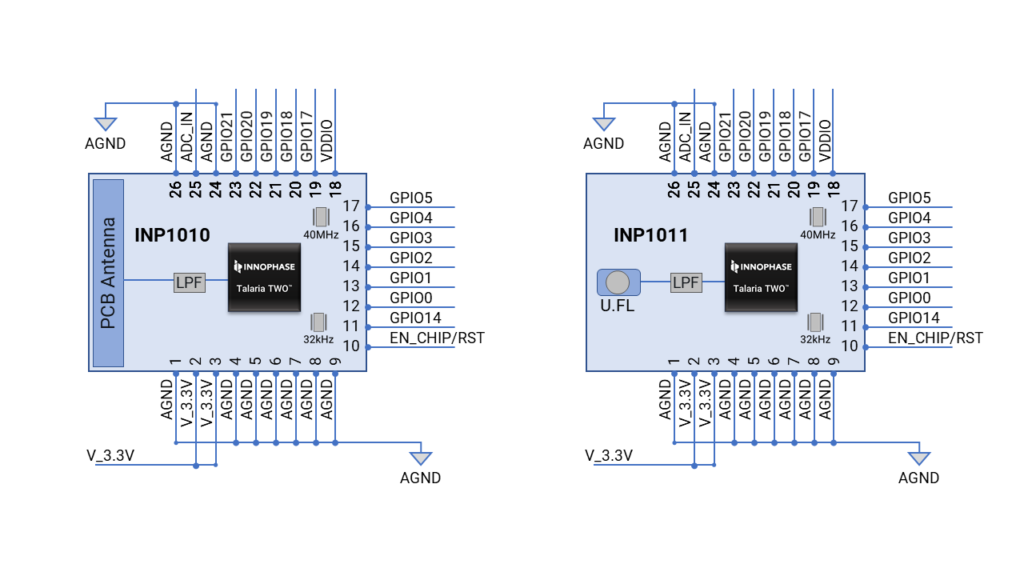

Now engineers can focus on the value-added aspects of their design while being able to take advantage of the ultra-low power wireless connectivity and still meet the demand for ease of integration, simpler designs and faster time to market. Using the module is easy – just connect a single power supply and GPIOs to your peripherals then the system is ready for use.

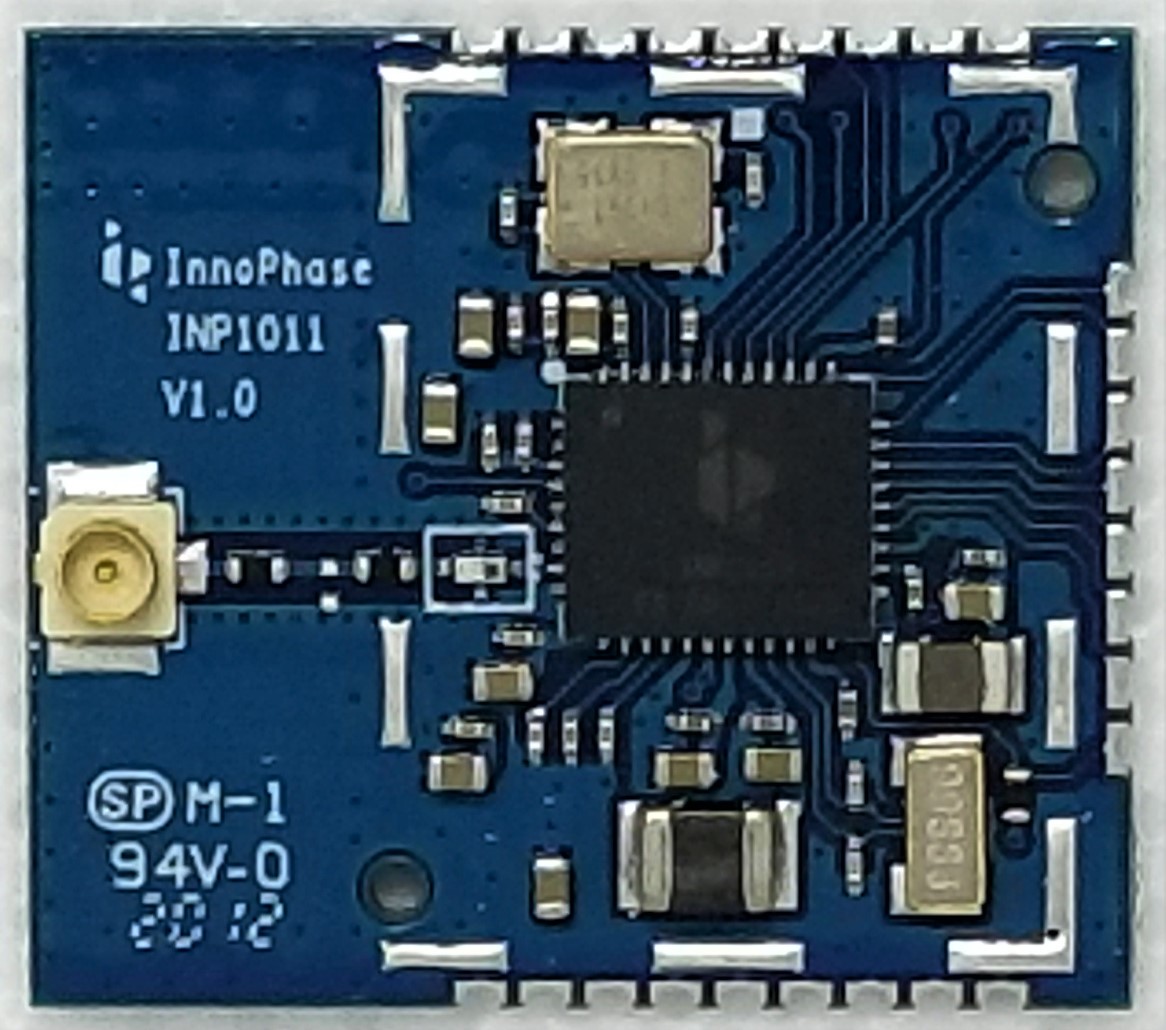

New IoT designs will experience a tremendous improvement in battery life plus direct-to-cloud connectivity that lowers installation complexity. The modules can operate in stand-alone mode, in conjunction with an external MCU or in a hybrid mode where the system control and processing responsibilities are shared between the module and an external MCU. They have either a printed PCB antenna (INP1010) or U.FL antenna connector (INP1011) and have completed Wi-Fi Alliance, Bluetooth SIG, FCC, and IC (Canada) testing and certification, with CE certification coming in third quarter 2020.
