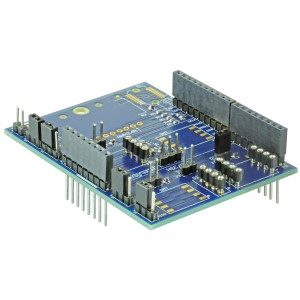

SEK001

Ürün Tanımı

Evaluates the Honeywell TruStability™ RSC Series; HSC Series and SSC Series (digital versions only) Board Mount Pressure Sensors.

The SEK001 has sockets to receive the following Honeywell pressure sensors. All sensors are sold separately. Only one sensor may be evaluated at a time.

• RSC Series TruStability™ Board Mount Pressure Sensors
  • High resolution, high accuracy, compensated/amplified
  • 24-bit digital SPI-compatible output
  • DIP and SMT packages
  • ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
• HSC Series TruStability™ Board Mount Pressure Sensors
  • High accuracy, compensated/amplified
  • Digital output versions only
  • SPI, I2C: DIP and SMT packages
  • I2C: SIP packages
  • ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
• SSC Series TruStability™ Board Mount Pressure Sensors
  • Standard accuracy, compensated/amplified
  • Digital output versions only
  • SPI, I2C: DIP and SMT packages
  • I2C: SIP packages
  • ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi

The SEK001 board is then plugged in as a shield board to the user-provided Arduino™ Uno Rev3 board. Five jumpers for an HSC Series or SSC Series, I2C output, 5 Vdc pressure sensor are preconfigured on the SEK001 board.
