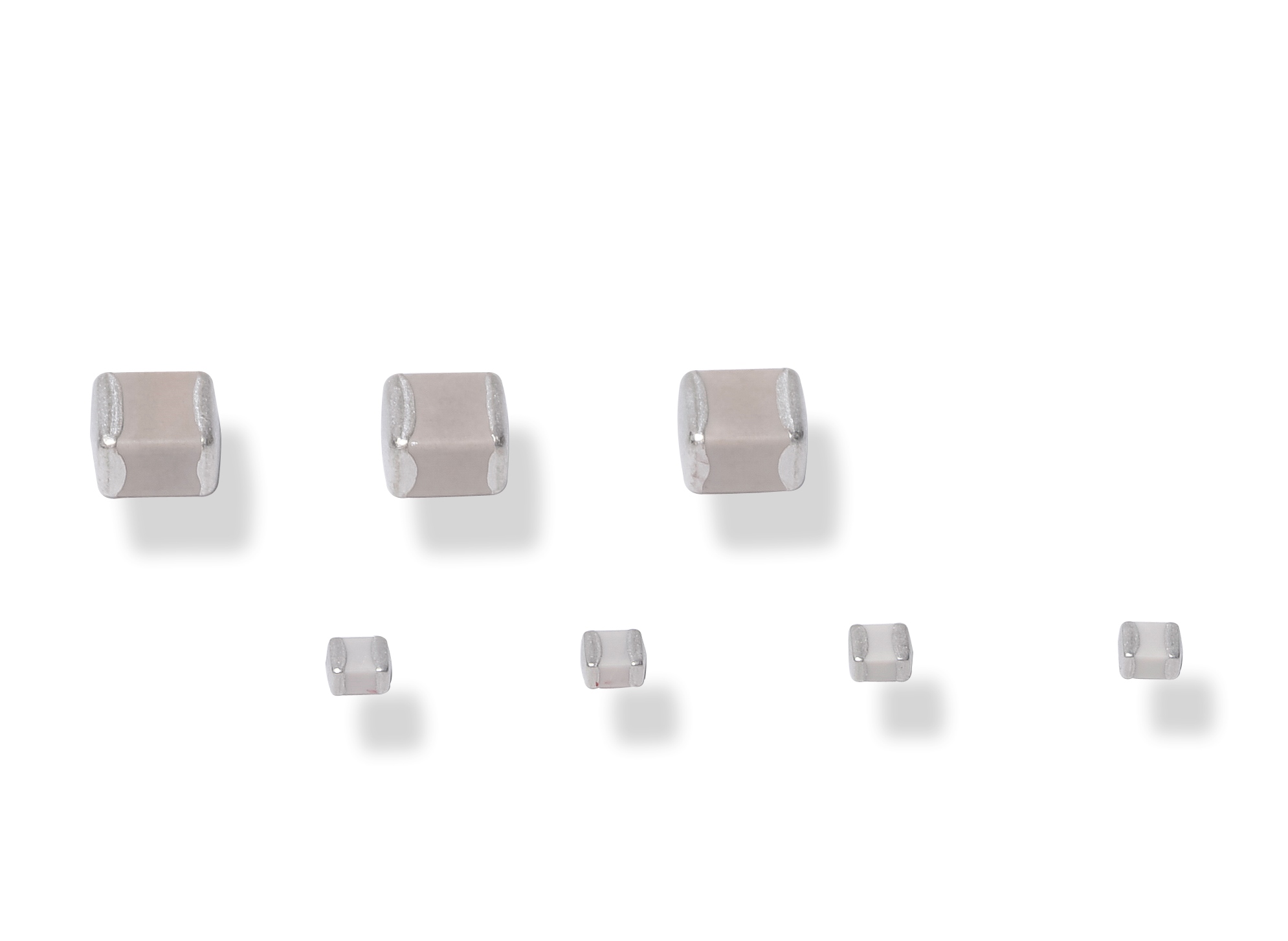

SH SERIES
Main Features
Ultra low ESR |
High working voltage up to 1500V |
Available on Modelithics |
Typical Applications
UHF, Microwave, RF power amplifiers |
Filter networks |
MRI coils |
Technical Characteristics
Dielectric | NPO | |
Capacitance | Minimum : 0,2 pF | |
Capacitance | Maximum : 1000 pF | |
Voltage DC | Up to: 1500 V | |
Temperature | Minimum : -55 °C | |
Temperature | Maximum : 150 °C | |
Case sizes | 0402 0603 0805 0505 1111 1206 1210 | |
Terminations | Micro-strip Ribbon Radial Wire |
