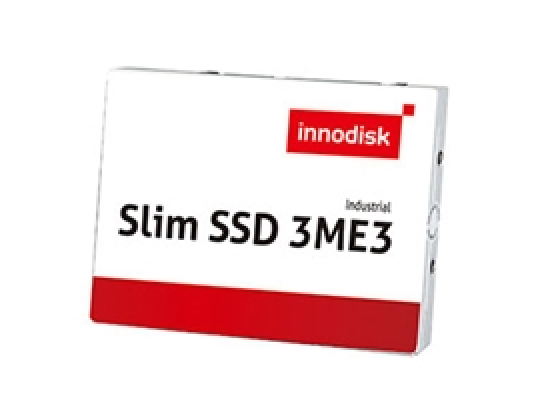

Slim SSD 3ME3
Ürün Tanımı
Product Features
- SATA III solution for industrial field
- Innovative Firmware Algorithm
- DRAM-less, 100% data integrity
- Excellent random performance
- Supports TRIM/NCQ/SMART
- Built in iData Guard
- iSMART disk health monitoring
- Compatible with JEDEC MO-297 standard
- Alternatively solution of 2.5” SSD
Overview:
Innodisk Slim SSD 3ME3 is SATA III 6Gb/s Flash based disk, which designed with standard SATA interface (7+15 SATA connector). With its smaller dimension, Slim SSD 3ME3 is an alternative solution of 2.5” SSD for those embedded system that may have mechanical and space concerns. Innodisk Slim SSD 3ME3 operates under SATA III (6.0Gb/s) interface with excellent performance and reliability making it the ideal solution for a variety of applications, including embedded system, and industrial field.
Specifications:
| Model Name | Slim SSD 3ME3 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Type | 1.8" |
| Capacity | 8GB~128GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 350/130 |
| Max. Power Consumption | 1.6W (5V x 310 mA ) |
| Thermal Sensor | ST- Optional / WT- Default |
| External DRAM Buffer | N |
| H/W Write Protect | N |
| iCell | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 69.85 x 50.0 x 9.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Order Information: |
| Operation Temp. | Standard Grade (0°C ~ +70°C) | Industrial Grade (-40°C ~ +85°C) |
| 8GB | DEMLM-08GD09BC1SC | DEMLM-08GD09BW1SC |
| 16GB | DEMLM-16GD09BC1SC | DEMLM-16GD09BW1SC |
| 32GB | DEMLM-32GD09BC1DC | DEMLM-32GD09BW1DC |
| 64GB | DEMLM-64GD08BC1QC | DEMLM-64GD08BW1QC |
| 128GB | DEMLM-A28D08BC1QC | DEMLM-A28D08BW1QC |
| 256GB | DEMLM-B56D08BC1QC | DEMLM-B56D08BW1QC |
