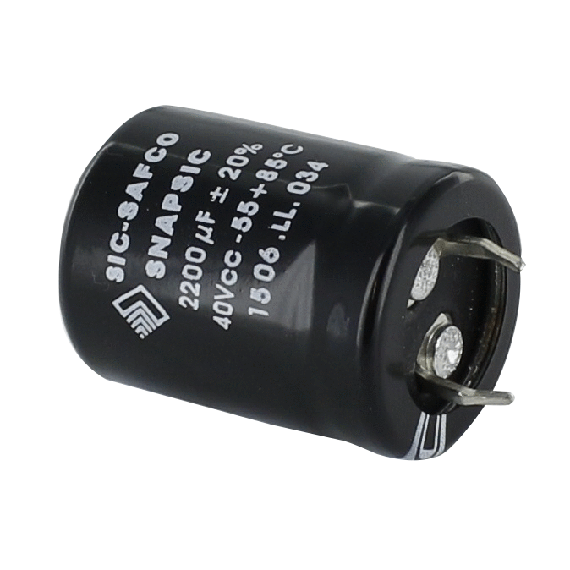

SNAPSIC
.gif "SNAPSIC")
Ürün Tanımı
Main Features
| Standard Snap in |
Typical Applications
| Filtering |
Technical Characteristics
| Dielectric | Aluminum | |
| Capacitance | Minimum : 22 µF | |
| Capacitance | Maximum : 47000 µF | |
| Voltage DC | Minimum : 16 V | |
| Voltage DC | Maximum : 500 V | |
| Voltage AC | Not supported | |
| Temperature | Minimum : -55 °C | |
| Temperature | Maximum : 85 °C | |
| Case sizes | 22x25 22x30 25x30 25x40 30x40 35x40 35x50 30x30 35x30 25x25 30x50 | |
| Terminations | snap 2 pins | |
| Notes | No special note |
