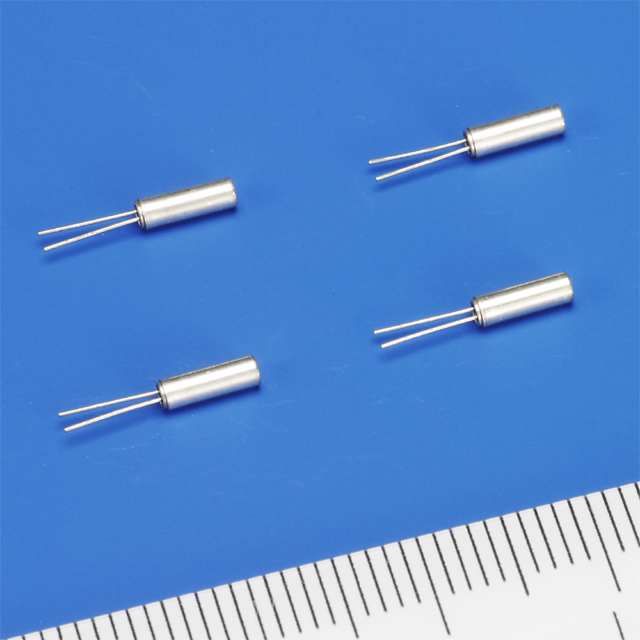

VT-200-F
.jpg "VT-200-F")
Ürün Tanımı
FEATURES
- Compact tubular package.
- Photolithographic process.
- Excellent shock resistance and environmental characteristics.
- Pb-free.
- Complies with EU RoHS directive
SPECIFICATIONS
| Item | Symbol | Specifications |
|---|---|---|
| Nominal Frequency | f_nom | 32.768kHz |
| Frequency Tolerance | f_tol | ±5 x 10-6, ±10 x 10-6, ±20 x 10-6 ※Please contact us for inquiries regarding available tolerance. |
| Turnover Temperature | Ti | +25±5ºC |
| Parabolic Coefficient | B | (−0.035±10%) x 10-6/ºC2 |
| Load Capacitance | CL | 7.0pF, 9.0pF, 12.5pF ※Please contact us for inquiries regarding available CL. |
| Motional Resistance(ESR) | R1 | 50kΩ max. |
| Absolute Maximum Drive Level | DLmax. | 1.0μW |
| Drive Level | DL | 0.1μW |
| Shunt Capacitance | C 0 | 0.9pF typ. |
| Frequency Ageing | f_age | ±3 x 10-6 |
| Operating Temperature | T_use | −40ºC to +85ºC |
| Storage Temperature | T_stg | −40ºC to +85ºC |
